cold rolling mill Double Cut Shear Knife for cut the front and rear side of the coil
Senda Double Cut Shear Knife used to used to cut hot rolling coils and cold rolling coil together with Side Trimmer Knife. (plating, annealing and rolling). For shearing middle or thick thickness metal plate, we recommend H13K, 6CrW2Si, LD, SKD11 etc material.
It can cut plate up to 3.2mm thickness for cold rolled coil, and 12.7mm thick for hot rolled coils.
| Brand | Senda |
| Country of Origin | China |
| Material | D2, SKD11, 6CrW2Si etc |
| Size: | Max reach 6000mm Length |
| Size: | Customized |
| Hardness | HRC 58~~62 |
| Application | Non-ferrous processing factory,cold rolling mill, hot strip mill |
Advantages of Senda Double Cut Shear Knife:
- High quality selection of raw material for each shear blade
- High precision machining equipments
- Quality guarantees with inspection on every shear blade
- Delivery ontime for each order
- Intime after-sale services provided by SENDA
Popular size:
| double side shears TOP | 2080*170*100mm, 2200*170*100mm 3500*170*100mm, 2800*205*100mm |
| double side shears BOTTOM | 2075*160*70mm, 2200*150*100mm 3500*150*100mm, 2800*150*100mm |

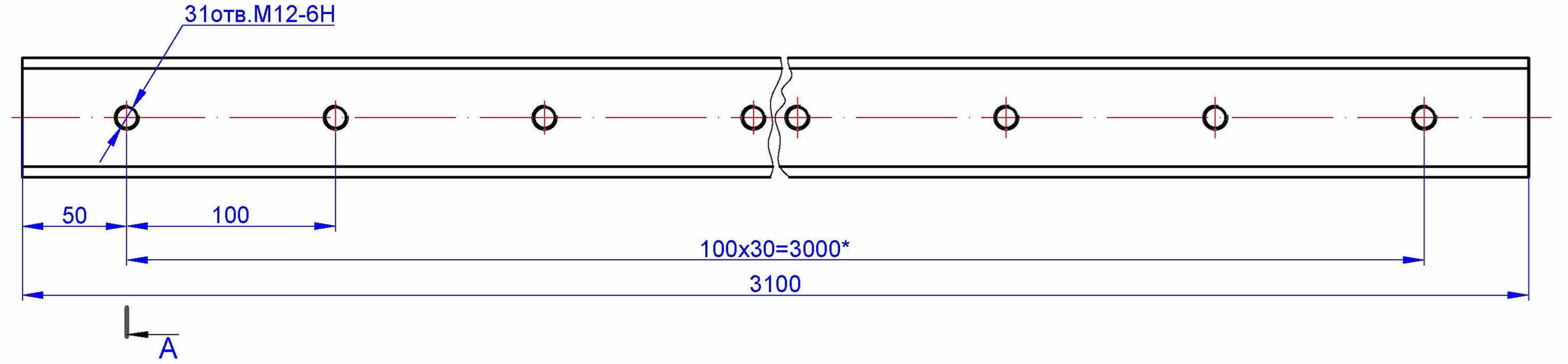

TOP blade

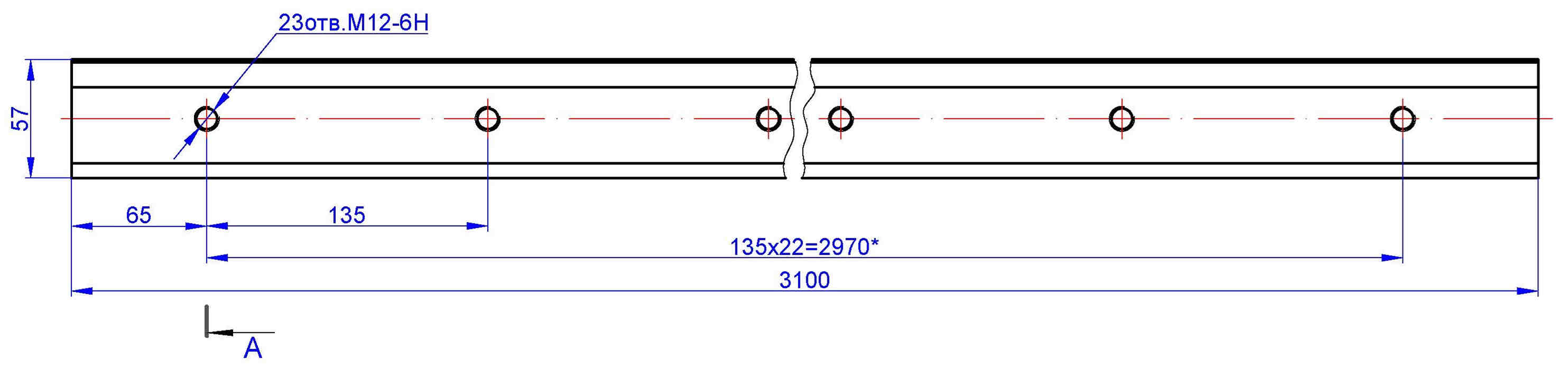

Bottom blade
We manufacture every type of knife used on every kind of mill processing and finishing line, includes:
Flat bar shear blades
Angle shear blades
Coper notcher blades
Angle notcher blades
Bar cutter blades
One to four cutting edges per blade
Scissor style cutting blades
Guillotine style blades
Threaded and countersunk mounts
Custom sizes and styles available- send a drawing or a sample
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
Product Tags:
|
|

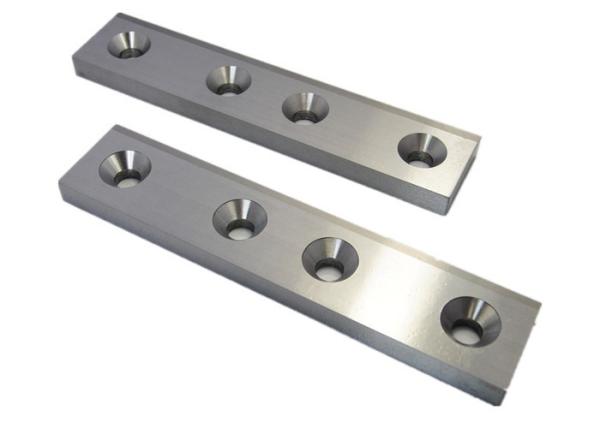

Hot Shear Blades 6CrW2Si Images
|
